Optical distribution · Fibre infrastructure

ODF FIBRE PANELS.
Every connection, accounted for.

Two high-density optical distribution cabinets, engineered, assembled and tested as a field-ready fibre package for delivery to Norway.

Explore the cabinet build

Completed ODF cabinets · Monitor Systems

672fitted fibre pigtails

01 · The requirement

Build the density.
Keep every route clear.

The system brings a high fibre count into two organised, serviceable cabinets. Each build combines optical distribution, labelled blanking, cable management and protected routing in one controlled assembly.

Monitor Systems managed the cabinet design, component procurement, assembly, inspection, fibre testing, documentation, packing and delivery.

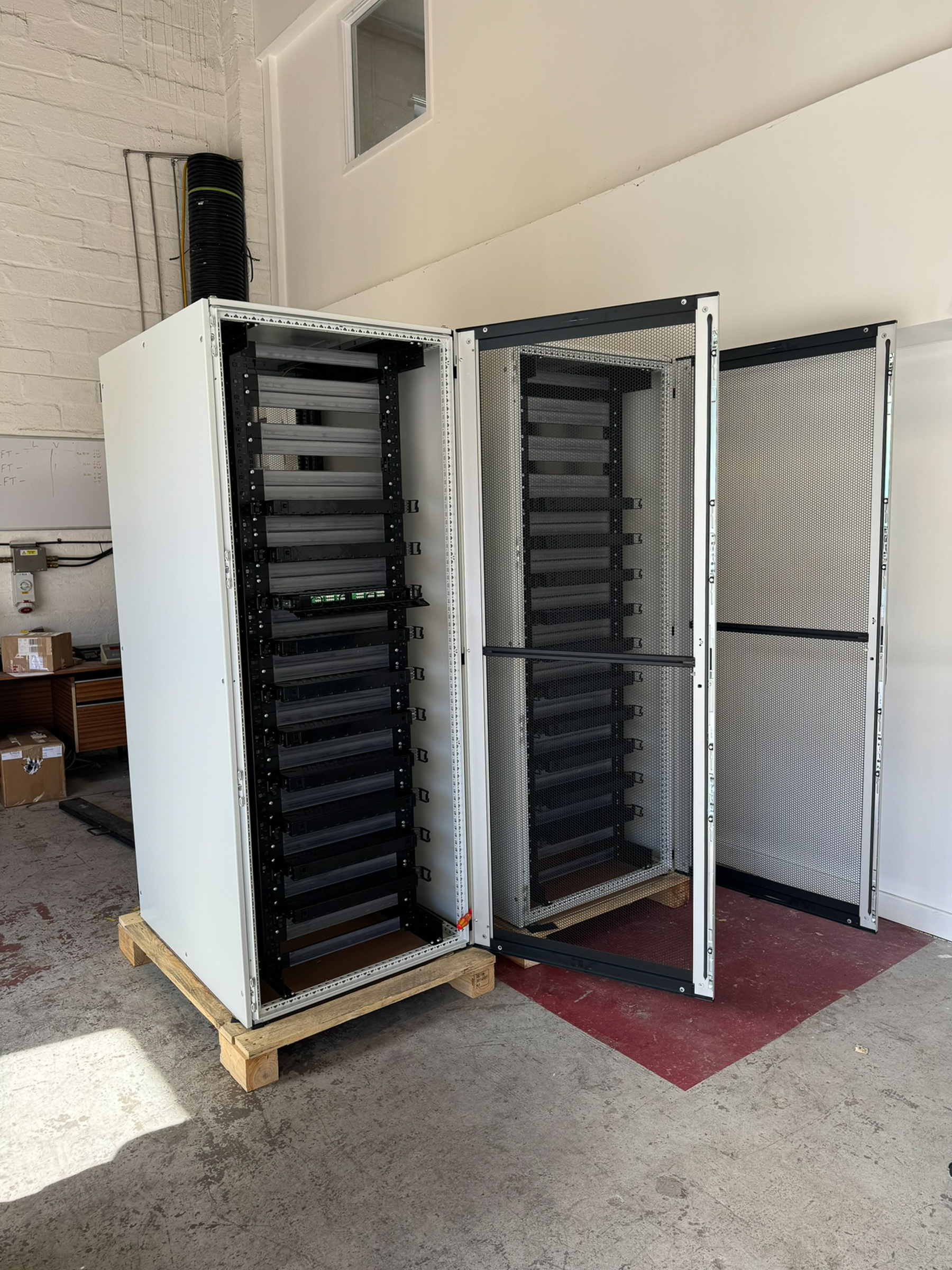

Open ODF cabinets showing the installed fibre distribution units — Open cabinets showing the installed ODF units and managed fibre routes

02 · Cabinet build

Fourteen ODFs.
One organised system.

The Rittal 5309.816 cabinets were configured to protect the fibre hardware while keeping every termination accessible for installation and service.

200 mm plinth, side panels and front and rear cable ducting
14 × 1U, 24-port SM/APC LC duplex ODF units
14 × 1U labelled blank plates
14 front cable-management units installed below the ODFs

03 · Controlled assembly

Built under control.
Recorded throughout.

Panel layouts and label drawings guided the workshop build. The complete engineering pack followed the cabinets, including inspection records, test readings, installation information and operation and maintenance documentation.

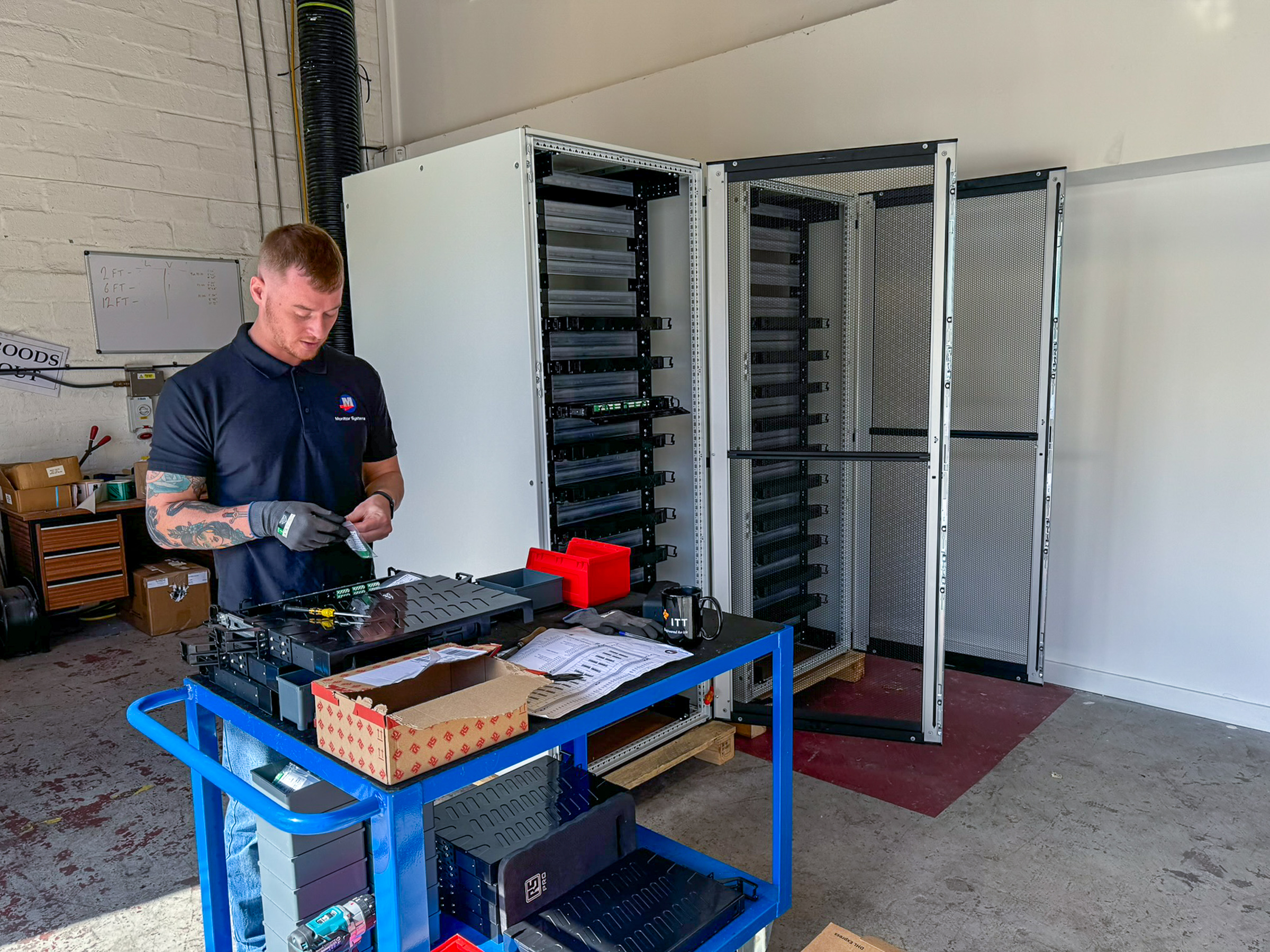

Technician assembling ODF fibre hardware in the workshop — ODF fibre hardware assembled and checked in the Monitor Systems workshop

04 · Fibre, quality and delivery

Test every path.
Document every result.

Factory acceptance testing included panel inspection and VFL continuity checks on every patch lead and pigtail. The two completed cabinets were packed together and delivered by road to Aker Solutions AS in Stord, Norway.

108 patch leads3 m LC/APC–LC/APC duplex leads in yellow LSZH, using G652.D singlemode fibre with maximum insertion loss of 0.15 dB.
672 pigtails48 per ODF, LC/APC singlemode 9/125, 900 µm and 1 m long, using G652.D fibre with maximum insertion loss of 0.2 dB.
Complete quality recordITP, certificates, fibre readings, FAT procedure, O&M manual, BOM, data sheets, specifications, project plans, schedule, spares and DOC.
Delivered to StordTwo cabinets packed in one protective crate, approximately 2000 × 1200 × 2400 mm, for DDP road freight to Aker Solutions AS, Norway, with an estimated 3-day transit.

Renewables case study

Route the fibre.
Prove every connection.
